Post by fivedriver on Jun 1, 2023 8:28:15 GMT

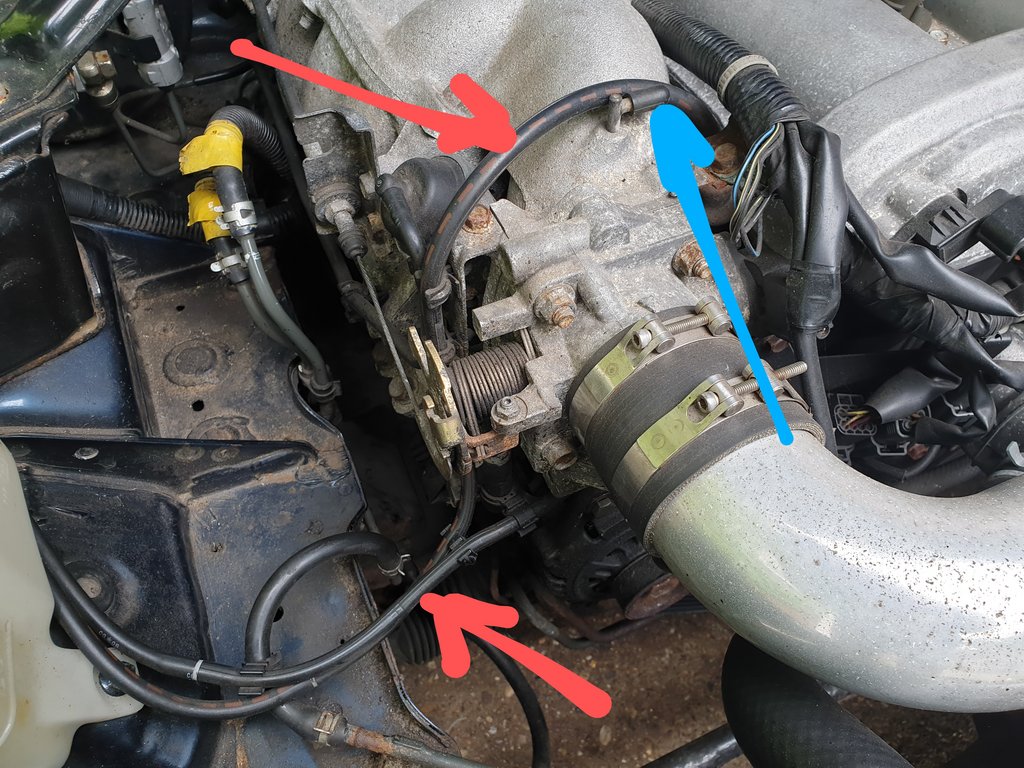

Hi gang. I wonder if those with mechanical knowledge might help me please? I've bought a Smiths mechanical vacuum gauge to dress up TOG's centre console. It works by simply using a hose from a vacuum line. Could you (ideally with a picture) suggest where might be best to introduce the tee piece please? Thanks in advance. Cheers, Guy Edit. Am I correct in thinking the lines arrowed in red are vacuum?  Also, what about the capped spur arrowed in blue? Could I take a vacuum feed directly from there? |
|
|
|
Post by RS on Jun 1, 2023 12:07:32 GMT
I don't see that there would be any problem attaching a vacuum pipe to that pipe with the blanking plug on it.
Why not run a temporary pipe from it to the gauge and see how it performs ?
I think having a single direct connection from the manifold just behind the throttle body will probably be the best solution as you're not draining the supply (vacuum) from another component.
|
|
|
|
Post by buggs on Jun 1, 2023 14:34:59 GMT
I've ran 3 different vacuum lines from my manifold for the supercharger. The one with the blanking plug should be the best as thats where you should get the best reading. That's the one I use to go straight to my ecu
|
|
|
|
Post by fivedriver on Jun 1, 2023 15:40:23 GMT
Perfect. Thanks guys. I'll give it a go. Good idea to do a trial run first Ian. That makes complete sense. I think I've spotted a blanking plug that I can use to run the tube, right near where the throttle cable comes through the bulkhead. buggs, where did you run yours? |
|
|
|
Post by buggs on Jun 1, 2023 15:48:31 GMT

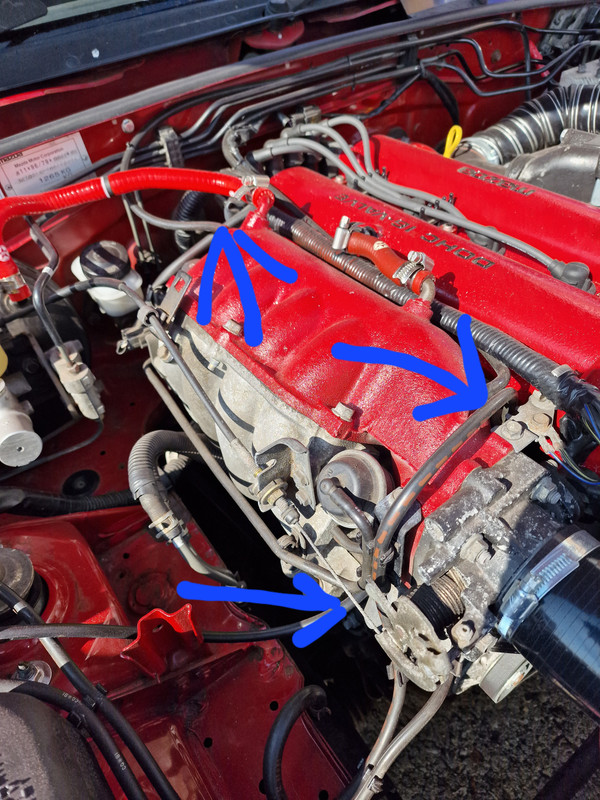

Perfect. Thanks guys. I'll give it a go. Good idea to do a trial run first Ian. That makes complete sense. I think I've spotted a blanking plug that I can use to run the tube, right near where the throttle cable comes through the bulkhead. buggs, where did you run yours?  Mine right behind the throttle body goes to the ECU, the one at the bottom goes to the blow off valve and the one at the back goes off to the bypass valve on the back of the supercharger |
|
|
|
Post by fivedriver on Jun 1, 2023 17:44:57 GMT
Thanks buggs, that's an informative image.
Do you know if each line draws the same vacuum or do the values differ?
|
|
|
|
Post by buggs on Jun 1, 2023 17:59:55 GMT
Thanks buggs, that's an informative image. Do you know if each line draws the same vacuum or do the values differ? I'd say they more than likely draw the same reading to be honest, can't see there being too much of a difference |
|
|
|
Post by fivedriver on Jun 1, 2023 19:40:54 GMT
All set to order some vacuum line but before I do, what diameter should I use please?
Anyone have a link to something suitable?
Very much appreciate the help guys, thanks
|
|
|
|
Post by buggs on Jun 1, 2023 19:52:31 GMT
|
|
|
|
Post by fivedriver on Jun 1, 2023 20:31:54 GMT
Awesome!
Thanks buggs π
Edit* All done.
Eager to see if/how it works. (It was an Ebay purchase and giving my history of Ebay purchases, anything could happen).
|
|
|
|
Post by Roadie on Jun 1, 2023 22:53:52 GMT
(It was an Ebay purchase and giving my history of Ebay purchases, anything could happen). I thought we weren't supposed to talk about the drunken 3:00am JCB purchase.
|
|
|
|
Post by fivedriver on Jun 2, 2023 13:56:49 GMT
π
π€
π€«
π
|
|
|
|
Post by Jeff - jthspace on Jun 2, 2023 15:51:59 GMT
(It was an Ebay purchase and giving my history of Ebay purchases, anything could happen). I thought we weren't supposed to talk about the drunken 3:00am JCB purchase.
That's OK, we've all done it. It's the OTHER THING that no one mentions (if they are wise). |
|
